2023 New Design PIR Sensor 20W 30W 40W 60W All In One Solar LED Street Light

Item Name:  20W all in one solar LED street light

Item No.: YF-SSL0212-20W

Total Lumen: >3400LM;

Luminaire Efficiency: 170lm/w;

Solar panel: 18V 50W Mono-crystalline

Battery: LiFePo4 12.8V 24Ah

LED chips:  Philips SMD3030 40pcs

Beam Angle:  75*140°

IP rating: IP65

Color Temperature: 6000-6500K(customize optional)

Color Rending Index: Ra>80

Lifespan: >50,000 Hours

Warranty: 3 Years

100% brightness when detect people, 30% brightness when normal lighting for energy saving

2023 New Design PIR Sensor All In One Solar LED Street Light

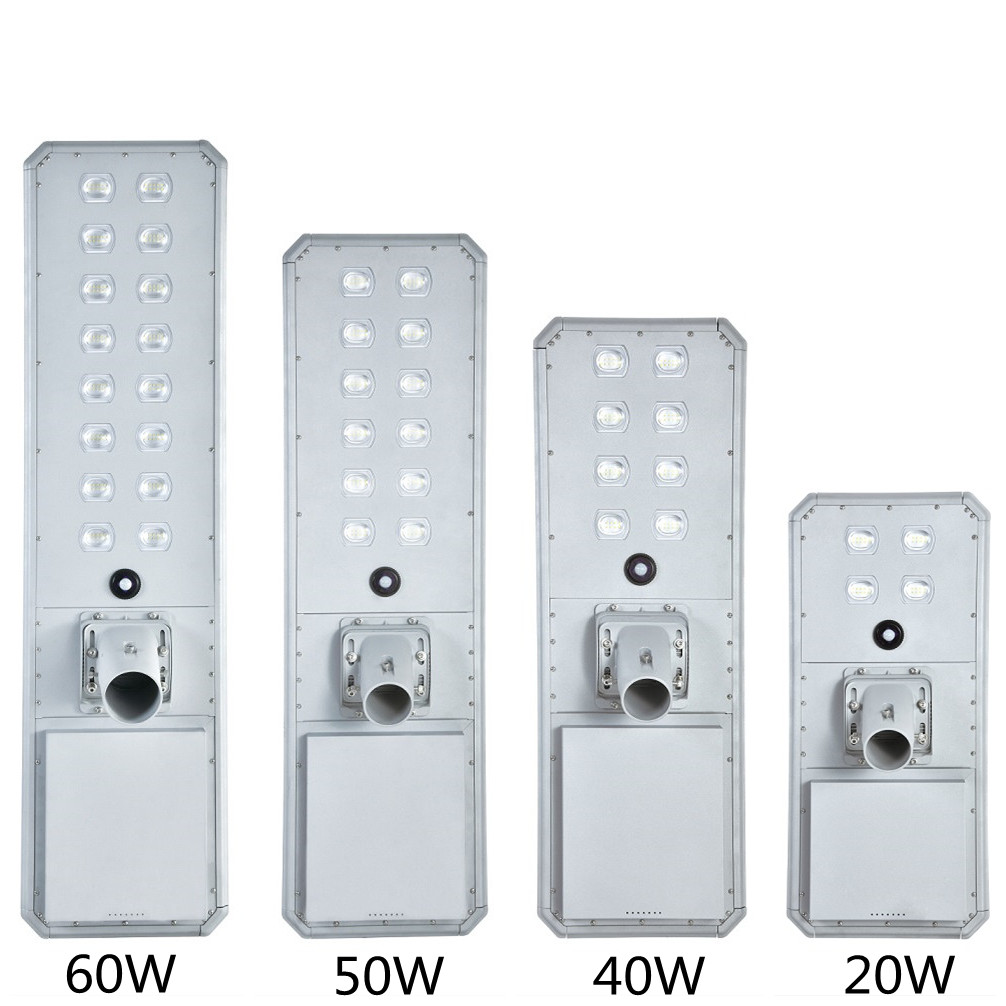

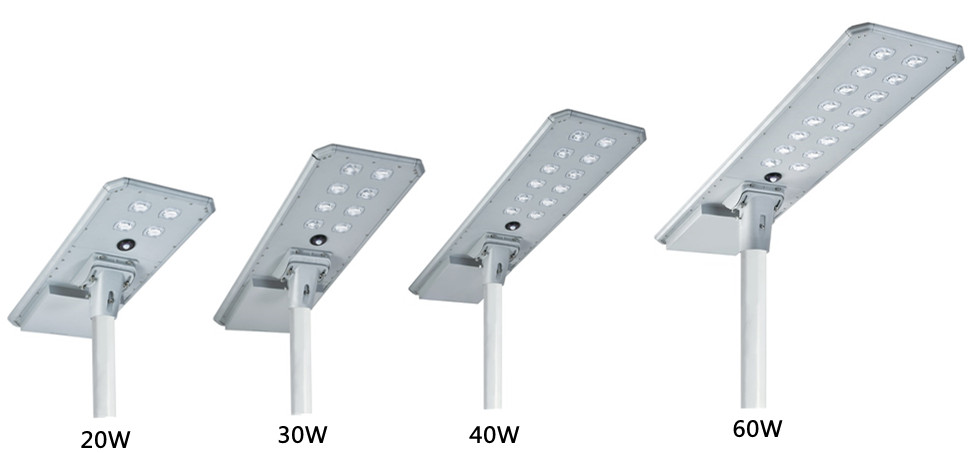

Power: 20/30/40/60W optional

Type: All in one

Key Features:

For materials:

1. SRNE/Depower/Remote Power controller, lifespan over 5 years.
2. BYD LiFePo4 battery, over 1500 cycles, lifespan over 10 years.
3. Philips 2835 chips, lifespan over 10 years
4. Mono-crystalline solar panel, lifespan over 25 years.
5. All in one design, heavy aluminum body, water proof IP65.

For structure:

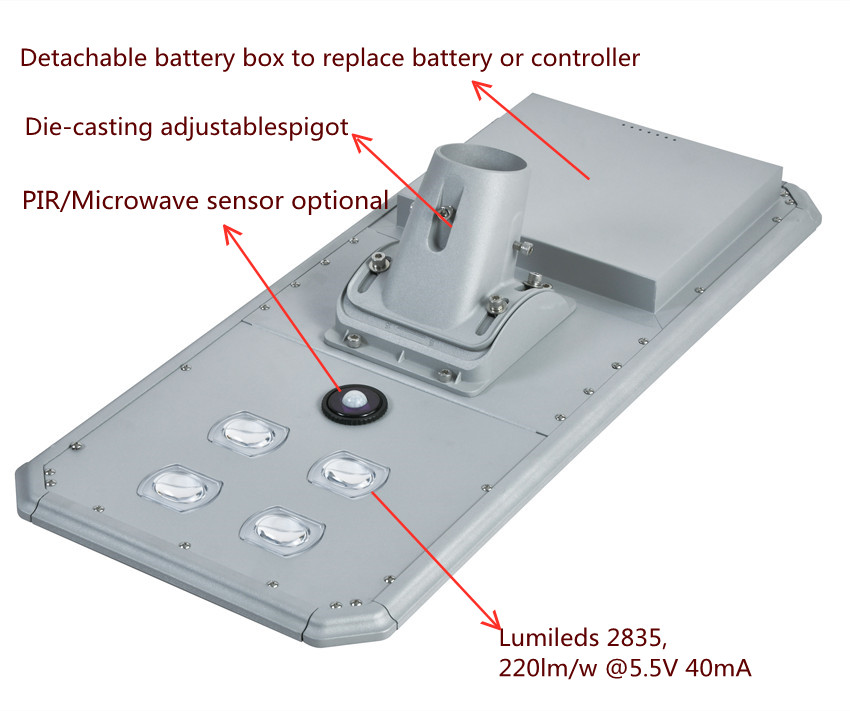

1. Easy open battery box for replace battery, different from traditional all in one type.
2. Adjustalbe die-casting aluminum alloy spigot.

For Lighting mode:

Turn on at dusk and turn off at dawn automatically.

3 working mode optional:

PIR sensor, or microwave sensor type, dimming type available.

Endure 5-6 rainy days.

Quick specification

Product breakdown

180-190lm/w all in one solar street light

By using 128pcs Philips Lumileds high lumen 2835 chips, peak power 20W, one LEDs is 0.156W.

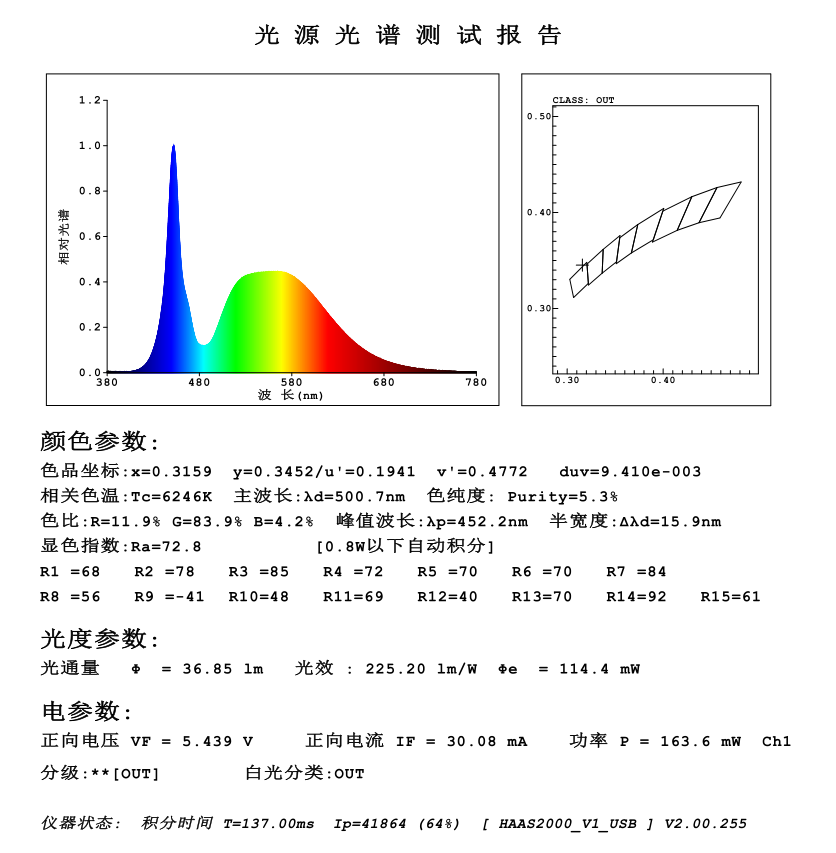

Philips Lumileds 2835 reach 225lm/w under condition @5.44V 30mA, 0.163W

20w 30w 40w 60w all in one solar street light with detachable battery box

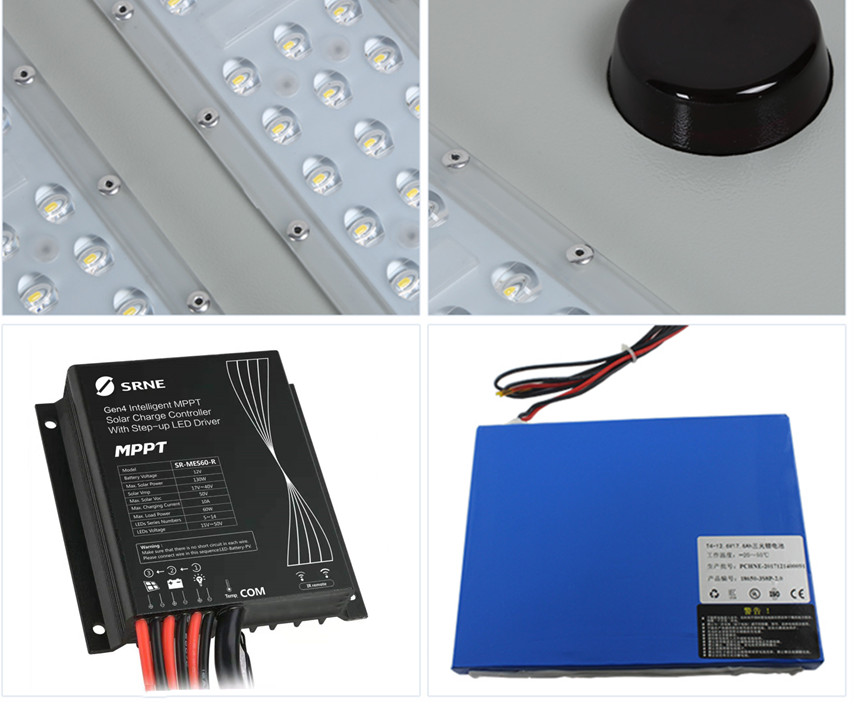

The main component for our all in one solar LED street light

1. High lumen Philips Lumileds 2835 chips
2. Brand new A1 class battery, not car recycled, more safety, higher capacity, longer lighting time, longer lifespan, quality guaranteed.
3. SRNE MPPT controller, charging efficiency is 40%-50% higher than normal PWM controller.
4. High quality mono-crystalline solar panel, Sunpower cell solar panel optional.

Sunpower C60 cell solar panel optional

all in one solar street light use sunpower solar panel

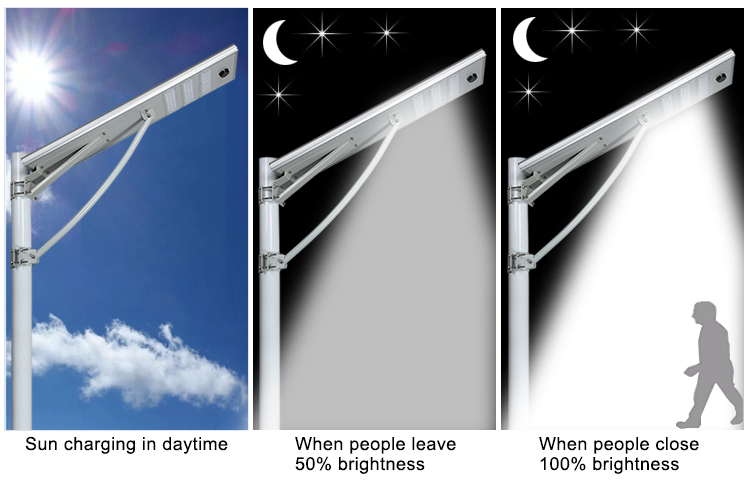

automatically turn on in the night, turn off in the early morning, full brightness when detect people, 50% brightness when no people.
