linhu@yaof-lighting.com 2024 New IP66 100W 150W 200W 300W LED street light China factory supply

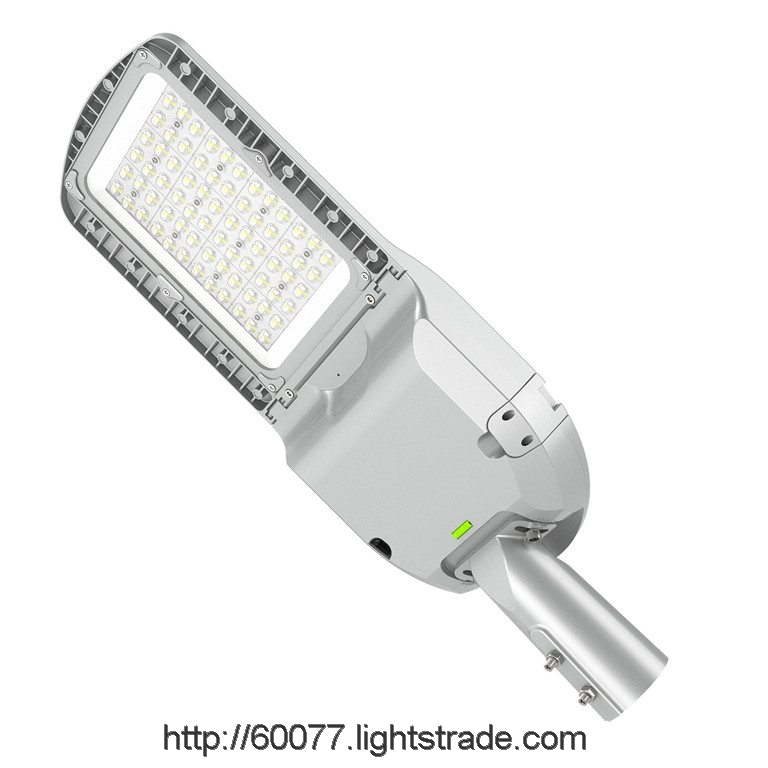

Item Name: 150W LED street lights
Item No.: CL-SL0120-150W
Luminaire efficiency: >160lm/w;
LED Driver: Meanwell MOSO, Philips
LED Chips: Philips/Bridgelux SMD 3030
Beam Angle: 60°/90°/120°/T2M/T3M/T4M
Input voltage: AC100-305V 50/60HZ
PF: >0.95 THD: <15% IP rating: IP66 Ra:>80
Color Temperature: 2700-6500K optional, Ra>80
Lifespan: >50,000 Hours
Product size: 680*260*109mm
Warranty: 5 Years
Main features
1 Heavy die-casting ADC No.12 aluminum alloy, excellent heat dissipation for enlong LED chips and driver lifespan.
2 Precise optical design and anti-glare lens, 60°/90°/120°/T2M/T3M/T4M degrees optional.
3 Super brightness and long lifespan, adopt Lumileds 3030 or Bridgelux 3030 chips, luminaire efficiency >150lm/w for this street light, Meanwell, Inventronics, Moso, Philips, Sosen driver available, input 100-305V suitable for any countries.
4 10KV and 20KV surge protection optional, suitable for countries with lots of lightning/thundering.
Special features and competition
1 Elegent design Smooth on the top of lamp body, dust and sands will fall off when wind blowing or snowing, especially designed for middle east countries.
2 Driver box buckle design, can be opened without any tools, just by hands.
3 More safety, with auto power off switch, when LED street light driver box opened, the light will power off automatically.

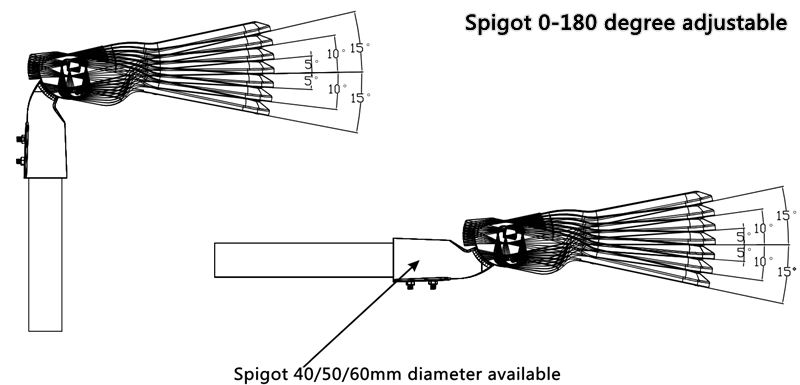

4 Spigot adjustable 0-180 degree, suitable for any kind of lamp arm in different upward angle.
5 Equipped with bubble spirit level for more accurate install the lamp to horizontal direction.

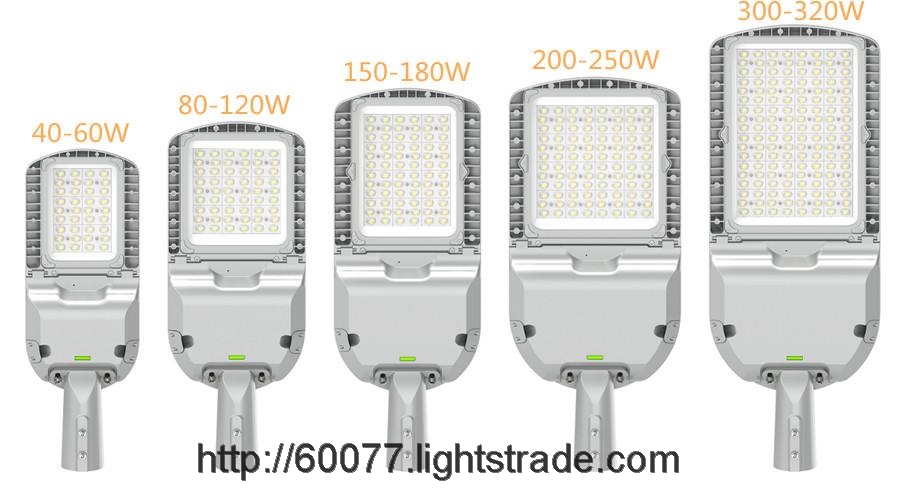

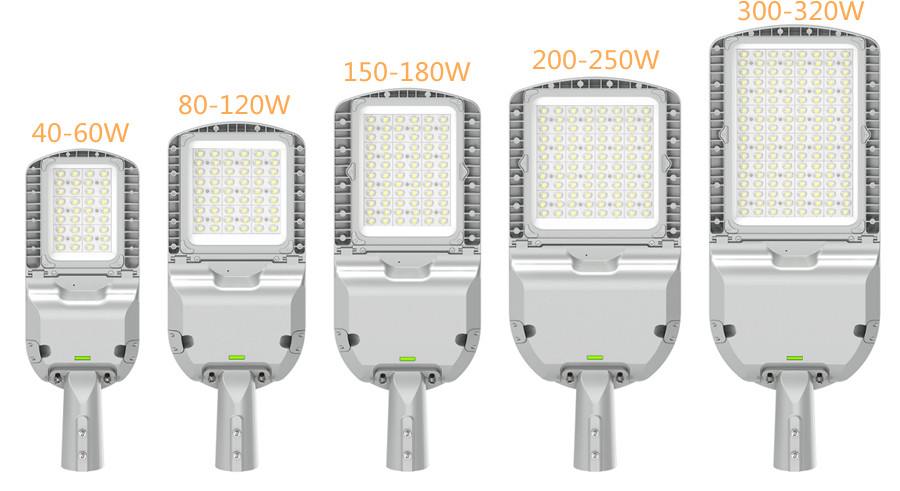

Full power range for 2024 New IP66 100W 150W 200W 300W LED street light China factory supply
| Item Number | Rated Power | LED(Philips 3030) | LED driver | Product size(mm) | Warranty |
| YF-SL0120-50W | 50-60W | 96/144pcs | Meanwell/MOSO/Philips | 570*200*109 | 5 years |
| YF-SL0120-100W | 80-120W | 144/216pcs | Meanwell/MOSO/Philips | 615*240*109 | 5 years |
| YF-SL0120-150W | 150-180W | 192/288pcs | Meanwell/MOSO/Philips | 680*260*109 | 5 years |
| YF-SL0120-200W | 200-250W | 256/384pcs | Meanwell/MOSO/Philips | 700*300*109 | 5 years |
| YF-SL0120-300W | 300-320W | 384/576pcs | Meanwell/MOSO/Philips | 790*300*110 | 5 years |

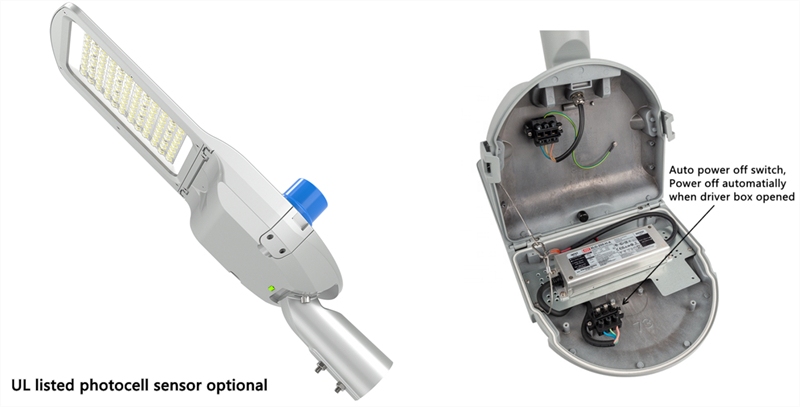

Can install a UL listed photocell sensor on the street light, dusk to dawn turn on and off automatically, can be equipped an extra auto power off switch, so when there is necessary maintenence work, open the driver box, power will off automatically.

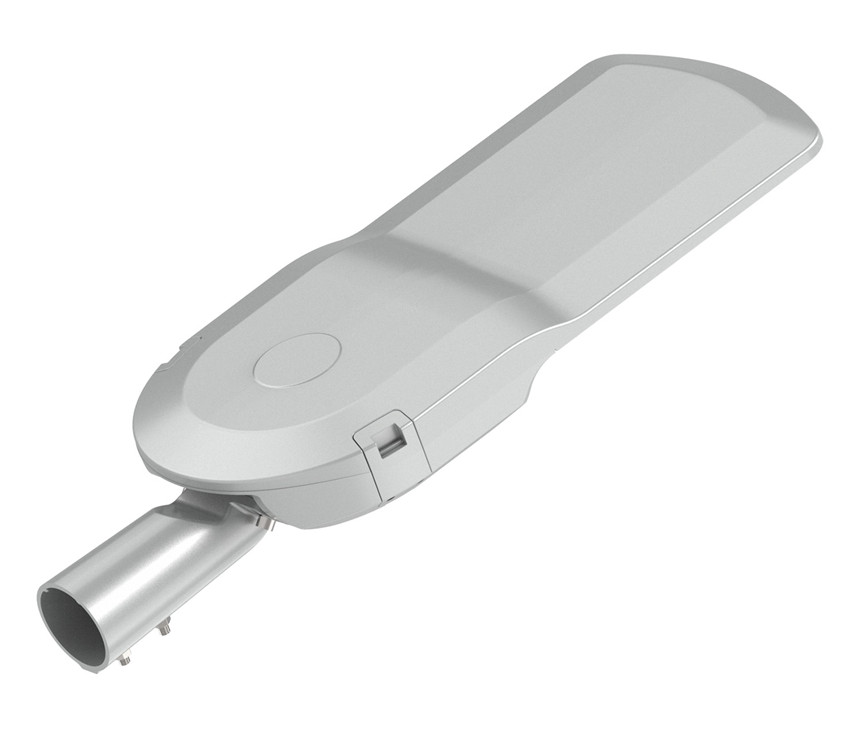

Back side view

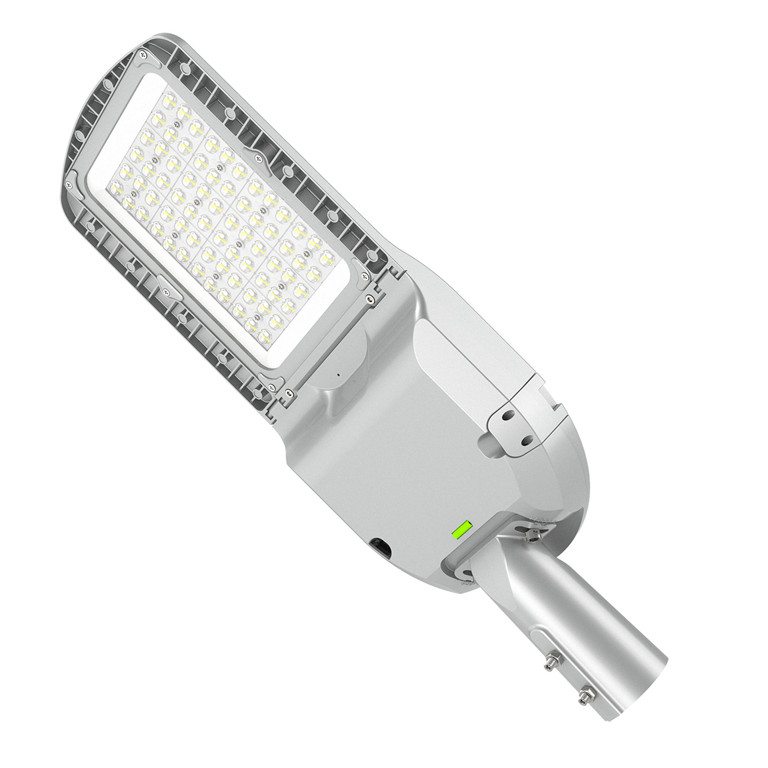

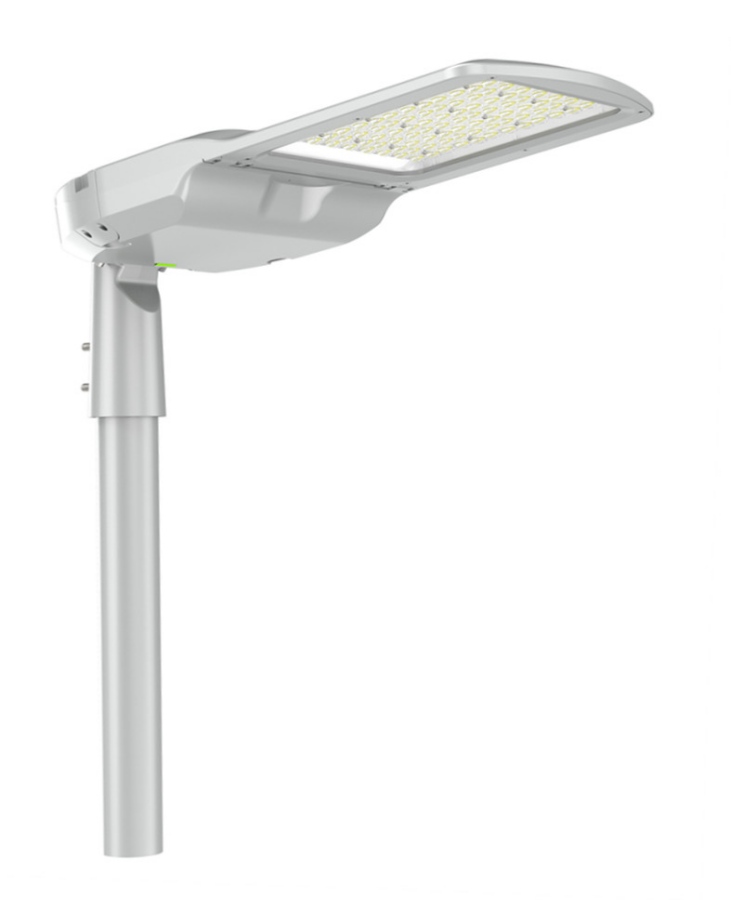

Side view

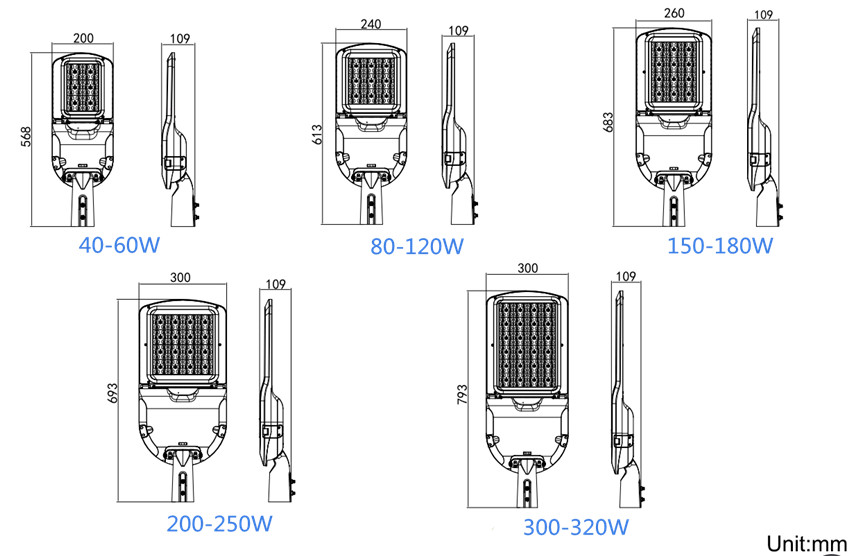

Product size for 2024 New IP66 100W 150W 200W 300W LED street light China factory supply

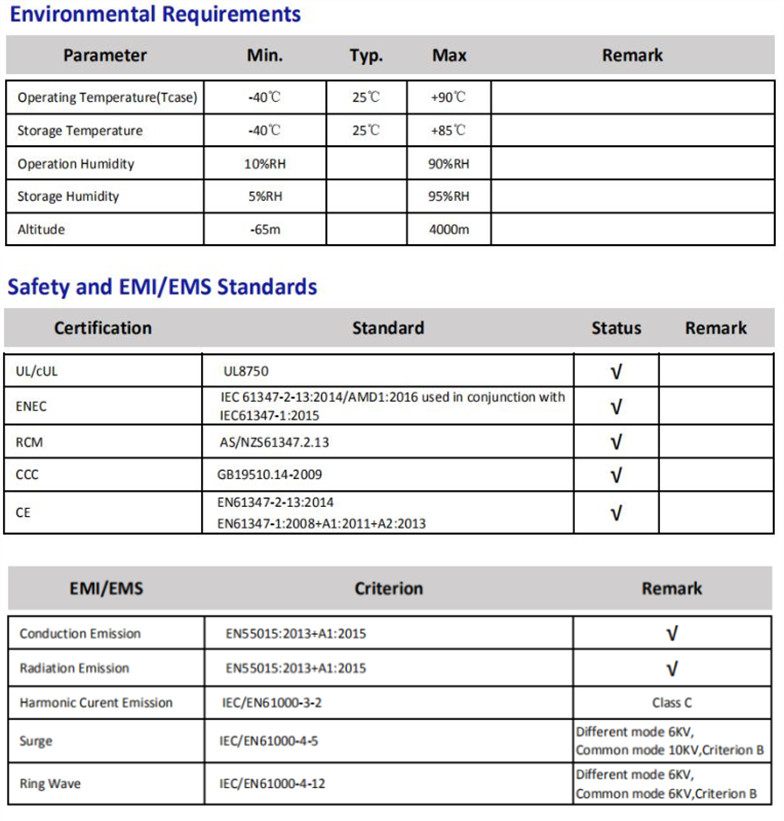

Safety standards for New design IP66 IK08 40-320W LED street light

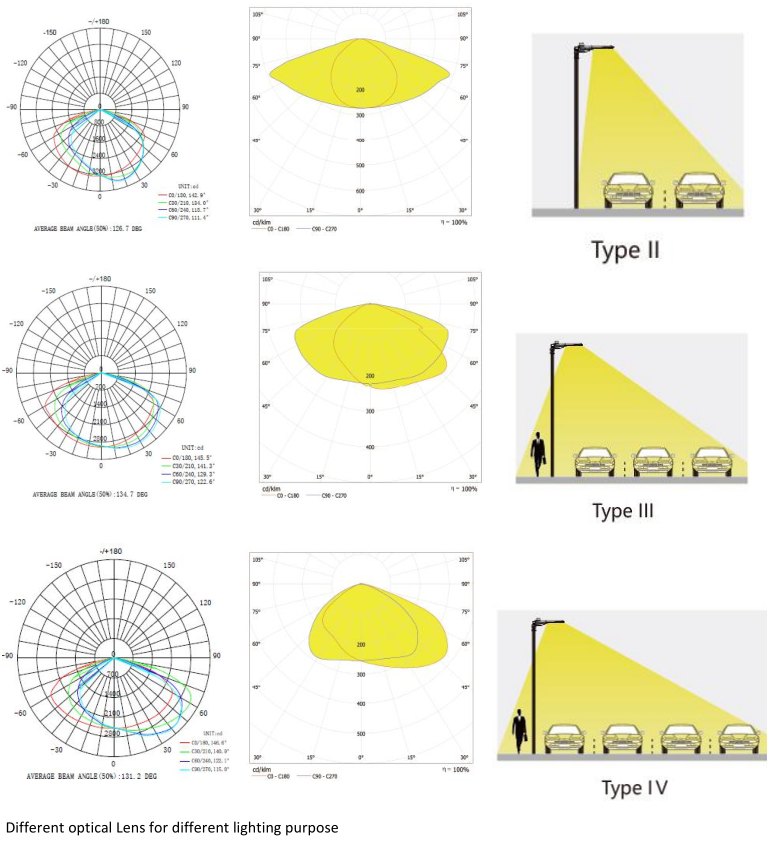

Optical design for 2024 New IP66 100W 150W 200W 300W LED street light China factory supply
60°/90°/120°/T2M/T3M/T4M degrees optional;
T2M suitable for 50W and 100LED street light, normally 2 carways.
T3M suitable for 150W, 200W and 240W, normally 3 carways.
T4M suitable for 300W, normally 4 carways.
